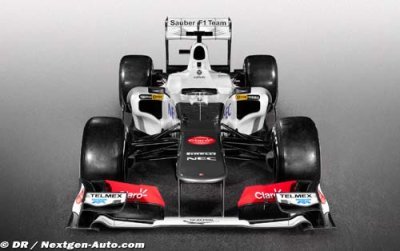

Sauber C31 launch : A radical evolution

Summarising all the efforts put into developing the new Sauber C31-Ferrari, Chief Designer Morris says: “The C31 is revolutionary where we had fresh ideas, particularly at the rear of the car, and it is an evolution where we knew we could carry over certain approaches. We had to improve on the weaknesses we identified on the C30, but at the same time we wanted to maintain its strengths.”

One of the goals was to increase the scope of the operating envelope compared to its predecessor. “We had established some good directions to go in towards the end of last year with the C30 which we wanted to continue with, particularly some of our DRS developments, and some of the ways we were opting for with the car’s set up in order to improve our qualifying performance without compromising our race pace,” elaborates Morris.

"The biggest change coming from the new Technical Regulations is that the exhaust position had to be moved away from the floor, which has required quite a new approach."

Despite continuity in respect of the tyre supplier, Morris also sees new challenges in this area: “We expect quite different tyre characteristics in 2012. Pirelli is in its second year, so is now beginning to refine its compounds and the tyre’s profile. The compounds generally tend to be heading to slightly softer solutions, slightly more biased to a stronger front tyre than last year. This, of course, changes the way you balance the car.”

Front end

The engineers opted again to go with a high chassis design. However, according to the new 2012 regulations, the nose cone needs to be lower, which is a safety requirement. As a result, the nose cone has quite a different shape to how it was in the past. The chassis itself shows absolute minimum cross sections all the way to the cockpit.

By an overall tidier design, the front suspension has been optimised for integration with the chassis and the upright. Otherwise it’s a traditional layout with a pushrod and a high-level wishbone. The dampers and springs are packaged quite differently compared to the C30 in order to support a new philosophy for the set-up of the front suspension.

The design of the new front wing benefited from directions the engineers were pursuing towards the end of the 2011 season.

Centre section

Packaging was further optimised under the side pods in order to open up more aerodynamic development scope in that area. The cooling layout is based around a similar philosophy to the C30, because that proved to be effective. It helps to get the volume of the coolers forward and allows the design of very compact rear bodywork.

Also with the roll-hoop the engineers were able to use the C30’s design as a good baseline, and managed to improve what was already a lightweight and aerodynamically efficient solution.

The KERS that Ferrari provided in 2011 was very effective. There were no major issues with its operation or reliability. For the new season Ferrari has improved the system even further.

Rear end

A familiar element of the car is the Ferrari engine, onto which an all-new carbon transmission is bolted – also supplied by Ferrari. The longitudinally mounted transmission is a very tidy, neat unit. The entire rear of the car is much more tightly packaged, helped by the gearbox design, and in addition the engineers have gone in some new directions around the floor at the back of the car. The exhaust tailpipe positions are regulated in 2012, which has had a further effect on how the bodywork design has been set out.

The rear suspension is now a pullrod design. It shows a long pullrod towards the front of the gearbox and wide angled wishbones. This design allows improved packaging of the rear spring and damper elements. Despite the change from pushrod to pullrod, in terms of kinematics the engineers maintained a similar direction to the one they went in for the C30.

The rear wing will again manage without a centre pylon. It is mounted to the endplates and the lower wing, and, of course, maintains its DRS capability.

Morris explains: “Because of the new definition in the rules we know that the disadvantages we had last year with a lack of the strong exhaust effect will be less of an issue for us now. As a result we evolved further our directions from C30 regarding the overall aero development of the car.”

Finally, Morris casts a glance at the next steps after the roll-out of the Sauber C31-Ferrari: “The current plan is to launch a fairly basic roll-out version of the car, which was defined quite some time ago. We will then be testing development parts during the upcoming weeks with a late upgrade for the first race on 18th March in Australia. Therefore the car will look quite different in Melbourne compared to the roll-out car.”
